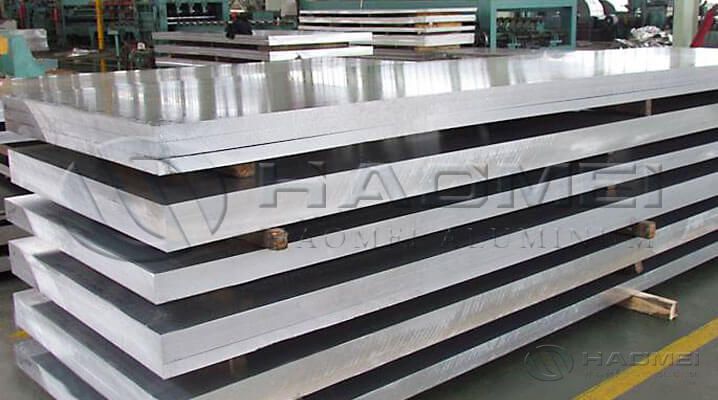

2024 aluminum plate, a typical hard aluminum, belongs to the aluminum-copper-magnesium aluminum alloy. It is of well-matched composition and excellent comprehensive performance. It is widely used in aircraft structures, rivets, truck hubs, propeller components and other structural components. 7075 aluminum plate is another choice.
The tensile strength of the alloy plate is 400-500MPa, and the heat resistance and fatigue resistance of the alloy are better than that of the alloy.
It is of high strength and good hear resistance, which can be used as working parts below 150℃.
The strength of 2024 aluminum alloy is better than 7075 plate when the temperature is over 125℃.
Its properties are all better in the hot state, annealing and quenching conditions.
Heat treatment strengthening effect is obvious.
It is of poor corrosion resistance, but it can be effectively protected by coating with pure aluminum
It is easy to crack when welding, but it can be welded by special process or riveted.
Alloy | Temper | Thickness(mm) | Width(mm) | Length(mm) |
2024 | O, T3,T4, T6, T72, T81, T361, T351, T861,T3511, T8611 | 0.3-600 | 800-2600 | 500-16000 |
Chemical Component | Percentage |
Silicon | 0.5 |
Iron | 0.5 |
Copper | 3.8-4.9 |
Manganese | 0.30-0.9 |
Magnesium | 1.2-1.8 |
Chromium | 0.1 |
Zinc | 0.25 |
Titanium | 0.15 |
Others, each | 0.05 |
Others, total | 0.15 |
Aluminum | remainder |
